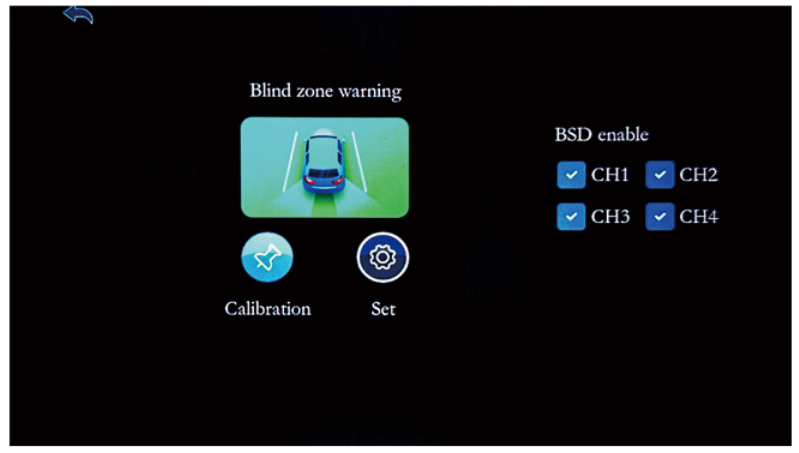

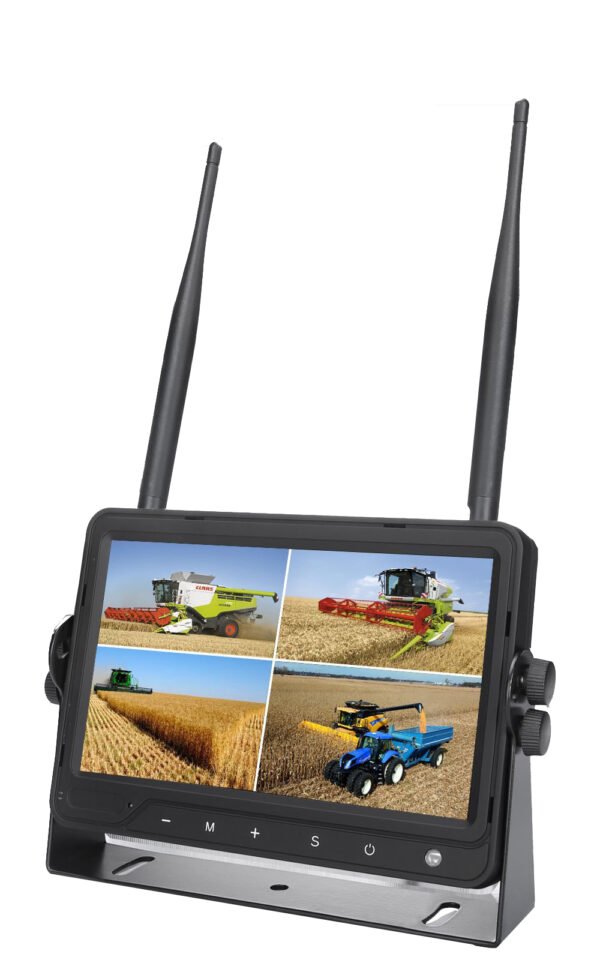

7 inch AI BSD Quad Monitor Specifications:
- Screen Size: 7 inches
- Screen Resolution: 1024 RGB (H) * 600 (V) / PAL / NTSC
- Screen Contrast Ratio: 450/㎡ / 500:1
- Operating Voltage/Current: DC12V (420mA) ~ 36V (120mA)
- Operating Temperature: -20°C to +70°C, 85% RH
- Storage Temperature: -30°C to +85°C, 85% RH
- Operating Frequency Range: 2412 ~ 2484 MHz
- Antenna Input Impedance: 50Ω
- Input/Output Standing Wave Ratio (SWR): 2:1
- Transmission Power: 19 dBm
- RF Transmission Rate: 11 Mbps
- Modulation Methods: CCK/QPSK/BPSK/OFDM (802.11g/n/ax)
- Spread Spectrum Method: Frequency Hopping
- Transmission Distance: Maximum 250m in open space
- Memory Card Support: Supports up to 128GB SD card
- Audio: Supports real-time audio playback and recording for later playback
- Control Modes: Remote control/panel button operation
- Operating Voltage/Current: DC10V (180mA) – 32V (60mA)
- Operating Temperature: -20°C to +70°C, 85% RH
- Storage Temperature: -30°C to +85°C, 85% RH

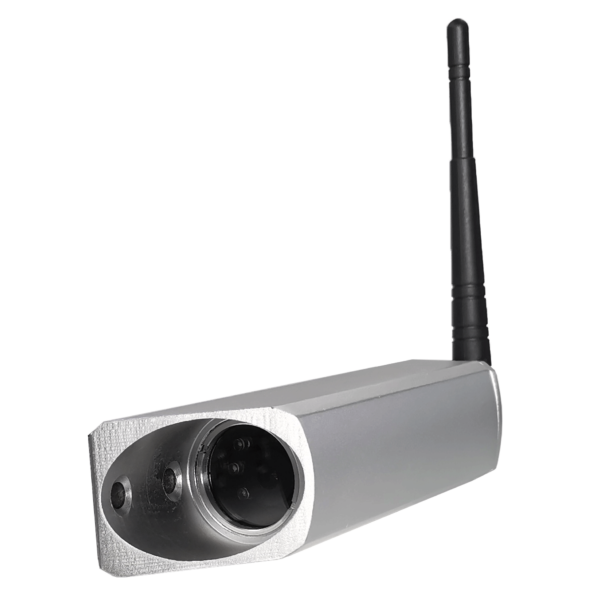

Wireless Camera Specifications:
- Imaging Sensor: 1/2.8 CMOS
- RF Transmitter Chip: ATBM6062S
- Operating Frequency Range: 2412 ~ 2484 MHz
- Antenna Input Impedance: 50Ω
- Input/Output Standing Wave Ratio (SWR): 2:1
- Transmission Power: 19 dBm
- RF Transmission Rate: 11 Mbps
- Modulation Methods: CCK/QPSK/BPSK/OFDM (802.11g/n/ax)
- Security Protocols: WEP, WPA, WPA2, WPA3 personal
- Transmission Distance: Maximum 250m in open space
- Latency: Maximum 180ms
- Resolution: 720P
- Video Frame Rate: 25 fps / 30 fps
- Video Compression Format: MPEG4
- Video System: PAL/NTSC
- Horizontal Viewing Angle: 100° / 150° (optional)
- Night Vision Distance: Greater than 10 meters
- Features: Shockproof, night vision with infrared lights
- Waterproof Rating: IP69
- Operating Voltage/Current: DC10V (180mA) – 36V (60mA)
- Operating Temperature: -20°C to +70°C, 85% RH
- Storage Temperature: -30°C to +85°C, 85% RH
-
