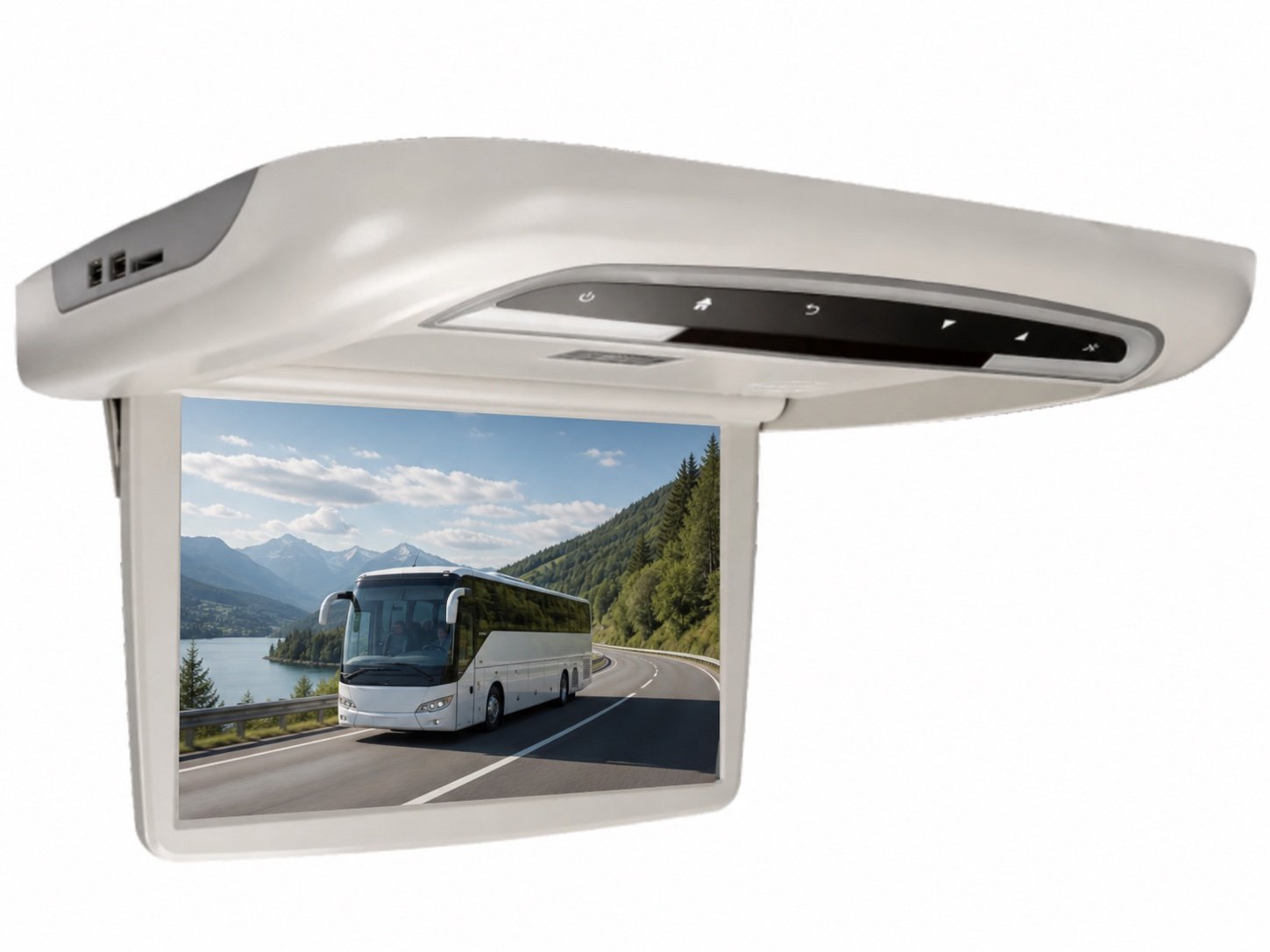

This 12.1-inch motorized roof-mounted monitor is designed for passenger vehicle display and entertainment projects where a powered flip-down screen is preferred. It combines a 1366 x 768 display with MP5/DVD media functions, USB and SD playback, two AV inputs, IR/FM audio transmission, built-in speakers and wireless remote control.
Quick Answer
The motorized mechanism opens and closes the display without requiring passengers to pull the screen down manually. The unit is designed for DC 12V vehicle installations and supports DVD, USB, SD and MP5 media sources, together with two AV inputs for compatible external devices. Before ordering, confirm the ceiling structure, installation clearance, power supply, input connectors and required media functions.
Key Features
- 12.1-inch motorized flip-down display
- 1366 x 768 native panel resolution
- DVD, MP5, USB and SD media playback
- Support for compatible 1080P video sources
- Two-channel AV video input
- IR and FM audio transmission
- Built-in speakers and wireless remote control
- Black, grey and beige housing options
- DC 12V vehicle power supply
Media and Audio Connections
The integrated MP5/DVD functions allow passengers to play compatible media from discs, USB storage and SD cards. Two AV inputs can connect compatible external video sources. IR and FM transmission provide additional audio options, while the built-in speakers support direct playback from the monitor.
The product accepts compatible 1080P source files; the image is displayed at the panel’s native 1366 x 768 resolution. Media format, connector and playback requirements should be confirmed for each project.
Technical Specifications
| Specification | Details |
|---|---|
| Screen size | 12.1 inches |
| Resolution | 1366 x 768 |
| Media functions | DVD, MP5, USB, SD and compatible 1080P source playback |
| Video inputs | Two-channel AV input |
| Audio options | IR, FM and built-in speakers |
| Control | Wireless remote control |
| Power supply | DC 12V |
| Housing colors | Black, grey or beige |
| Mounting | Motorized roof-mounted flip-down installation |
Typical Applications
- Tour buses and coaches
- Passenger vans and minibuses
- RV and motorhome display systems
- OEM passenger vehicle display projects
- Retrofit entertainment installations
Installation and Buyer Checklist
- Confirm that the vehicle provides a suitable DC 12V power supply.
- Check the ceiling structure and mounting position before installation.
- Allow sufficient clearance for the motorized screen to open and close.
- Confirm cable routing, AV connector type and media source requirements.
- Select the housing color and control configuration before production.
Motorized or Manual Flip-Down Monitor?
A motorized monitor is suitable when powered opening and closing is part of the required passenger experience. A manual drop-down monitor can be a simpler option when the screen will be opened directly by the passenger or installer. Compare this model with the 12.1-inch manual roof-mounted monitor and the larger 13.3-inch roof-mounted monitor.
See additional sizes and configurations in the roof-mounted monitor range.
Frequently Asked Questions
How does the motorized flip-down mechanism work?
The display uses a powered opening and closing mechanism. The exact control method and installation wiring should be confirmed for the selected configuration before ordering.
Which media sources does the monitor support?
The listed configuration supports DVD, MP5, USB and SD playback, together with two AV inputs for compatible external sources.
Does the monitor display native 1080P resolution?
The product supports compatible 1080P source playback, while the display panel has a native resolution of 1366 x 768.
Which vehicles can use this motorized roof monitor?
Typical applications include buses, coaches, passenger vans, minibuses and RVs with a suitable DC 12V electrical system and sufficient ceiling installation space.
Request a Configuration Recommendation
Send us the vehicle type, ceiling space, media sources, input requirements, housing color and order quantity. Contact Xinvisual for a suitable motorized roof-monitor configuration.
