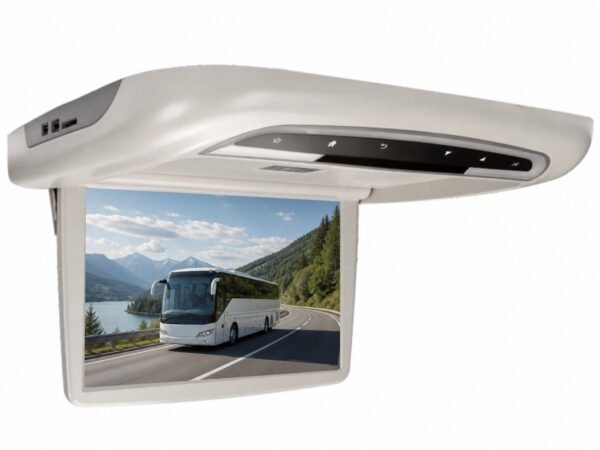

12.1-Inch Roof-Mounted Drop-Down Monitor for Passenger Vehicles
The Xinvisual 12.1-inch roof-mounted drop-down monitor is designed for buses, coaches, shuttle vehicles, vans, RVs and vehicle conversion projects that need a ceiling-mounted passenger display. It is available in monitor, MP5 and DVD configurations so buyers can select the playback and connection options required for their project.
The display uses a 1366RGB(H) x 768(V) panel and a fold-down structure that keeps the screen out of the way when it is not in use. Interface and audio functions depend on the selected configuration, so buyers should confirm the required version before ordering.
Key Features
- 12.1-inch digital display for passenger entertainment and onboard video applications.
- 1366RGB(H) x 768(V) resolution, 300 cd/m2 brightness and 300:1 contrast.
- Ceiling-mounted fold-down design for commercial and passenger vehicles.
- Adjustable screen position for different installation and viewing requirements.
- Built-in two-position dome lights.
- Black, beige and gray housing colors available.
- Monitor, MP5 and DVD configurations for different project requirements.
- Selected MP5 and DVD versions support dual-channel IR, FM audio and built-in speakers.
Recommended Vehicle Applications
Buses and Coaches
Use the monitor as a passenger entertainment or onboard information display in buses and coaches where a compact ceiling-mounted screen is preferred.
Shuttle Vehicles and Vans
The 12.1-inch size is suitable for passenger vans and shuttle vehicles that have limited ceiling space but still require a fold-down display.
RVs and Motorhomes
For RV and motorhome conversions, buyers can choose the input and playback configuration that matches the vehicle multimedia system.
Vehicle Conversion and OEM Projects
Vehicle builders, distributors and conversion companies can discuss housing color, connector requirements, packaging and project quantities with Xinvisual.
Technical Specifications
| Screen size | 12.1 inches |
|---|---|
| Resolution | 1366RGB(H) x 768(V) |
| Brightness | 300 cd/m2 |
| Contrast | 300:1 |
| Dimensions | 370 x 313 x 52 mm |
| Installation | Roof-mounted fold-down design |
| Dome lights | Built-in two-position dome lights |
| Housing colors | Black, beige or gray |
Available Configurations
Monitor Version
Provides two video inputs and one trigger wire for projects that already have an external video source.
MP5 Version
Adds USB, SD card and HDMI playback, two video inputs and left/right audio outputs.
DVD Version
Adds DVD, USB, SD card and HDMI playback, two video inputs, one video output and left/right audio inputs and outputs.
Configuration note: Available interfaces and audio functions vary by version. Confirm the exact input, output and playback requirements before quotation or production.
Buyer Selection Checklist
- Confirm whether the project needs a monitor-only, MP5 or DVD version.
- Measure the available ceiling area and check passenger viewing distance.
- Confirm the required video inputs, audio outputs and media playback functions.
- Select a housing color that matches the vehicle interior.
- For OEM or fleet projects, provide vehicle type, quantity, connector and packaging requirements.
Compare Roof-Mounted Display Options
For a smaller ceiling installation, compare the 10.1-inch drop-down monitor with DVD. For Android functions and a larger display, review the 15.6-inch Android roof-mounted monitor.
Browse the complete roof-mounted monitor product range, or read our guide to roof-mounted monitors for buses and passenger transport.
FAQ
Which vehicles can use this 12.1-inch roof-mounted monitor?
It is intended for buses, coaches, vans, shuttle vehicles, RVs, motorhomes and other passenger vehicle display projects.
Does every version include DVD playback?
No. Monitor-only, MP5 and DVD configurations are available. DVD playback is included only in the applicable DVD version.
Does the monitor support HDMI, USB and SD card playback?
These interfaces are available on selected MP5 and DVD configurations. Confirm the required version before ordering.
Can Xinvisual support OEM or bulk projects?
Xinvisual supports selected OEM and bulk-order projects. Buyers can provide vehicle type, quantity, housing color, connector and packaging requirements for evaluation.
Request a Roof-Mounted Monitor Recommendation
Tell us the vehicle type, ceiling space, required inputs, playback functions and project quantity. Contact Xinvisual for configuration guidance and a quotation.
