Product Overview

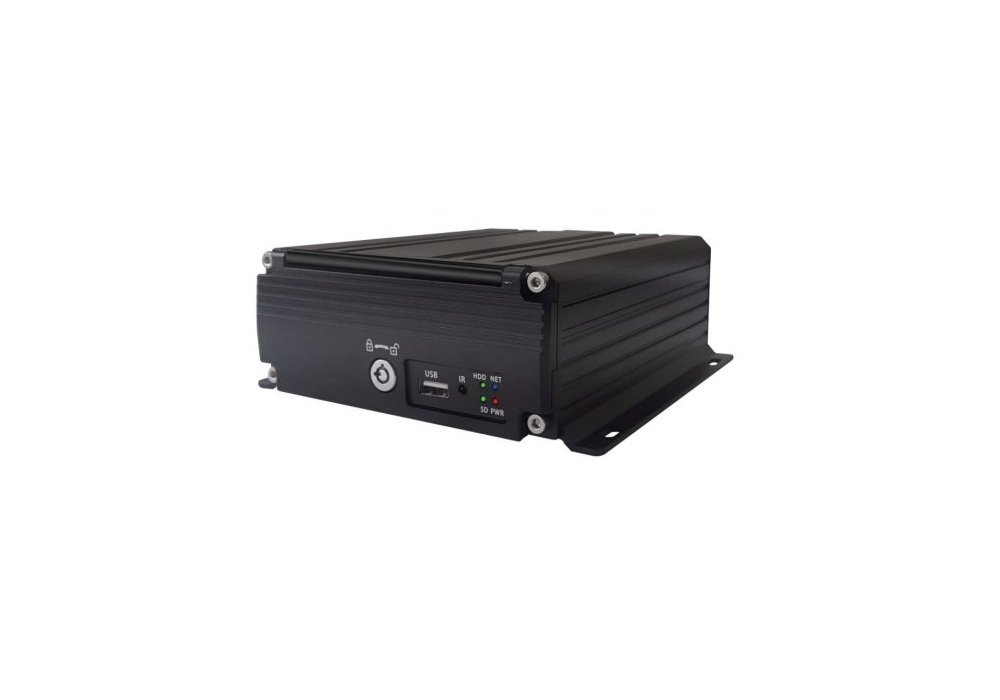

This 1080P 4G hard disk MDVR system is designed for commercial vehicle video recording, fleet monitoring and remote management projects. It supports 4-channel or 8-channel vehicle camera input depending on model configuration, and can combine video recording, GPS/BD positioning, 4G/WiFi communication and alarm input functions in one mobile DVR platform.
This system is suitable for trucks, buses, coaches, logistics fleets, special vehicles and other commercial vehicle applications that require long-time recording, event review and multi-camera monitoring.
Quick Answer: When Should Fleets Choose a Hard Disk MDVR?
A hard disk MDVR is recommended when a fleet needs longer recording time, multi-channel camera storage, GPS tracking and remote monitoring support. Compared with simple SD-card recording, a hard disk MDVR is more suitable for fleet projects that require larger storage capacity and more complete vehicle operation records.
Main Recording and Fleet Management Functions
- 1080P mobile video recording: supports high-definition vehicle camera recording for fleet event review.
- 4CH / 8CH camera input: suitable for front, rear, side, cabin or cargo-area camera combinations.
- 4G / WiFi remote monitoring: optional communication modules support remote video access and fleet management applications.
- GPS / BD positioning: supports vehicle location and route information depending on configuration.
- Hard disk and SD storage: supports large-capacity video storage for longer recording needs.
- Alarm input and output: supports trigger input and alarm linkage for fleet event management.
- Vehicle power protection: supports wide voltage input, reverse polarity, low-voltage, over-voltage, over-current and short-circuit protection.
Recommended Camera Configurations
| Fleet Application | Recommended Setup | Purpose |
|---|---|---|
| Truck fleet | Front camera + rear camera + side cameras + MDVR | Driving record, reversing review and blind spot video evidence |
| Bus / coach | Road camera + cabin camera + rear camera + MDVR | Passenger area monitoring and operation record |
| Logistics vehicle | Road camera + cargo area camera + GPS/4G MDVR | Delivery route record, cargo review and fleet dispatch support |
| Fleet safety upgrade | MDVR + vehicle cameras + monitor + optional AI BSD camera | Video recording, live display and blind spot awareness support |
Technical Specification Reference
| Model | |
| Product type | 1080P 4G hard disk mobile DVR / MDVR |
| Operating system | HiSilicon embedded Linux system |
| Video compression | H.264 |
| Video input | 4CH / 8CH 1080P, downward compatible |
| Supported formats | 1080P, 960P, 720P, TVI and CVBS mixed input |
| Video output | HDMI x1, VGA x1, CVBS x2 |
| Audio input | 8-channel M12 aviation connector interface |
| Alarm input | 4/6 groups IO alarm input depending on configuration |
| Alarm output | 2 switch output channels |
| Network options | 4G, WiFi, optional RJ45 Ethernet and RTSP streaming |
| Positioning | GPS / BD / GLONASS module options |
| Storage | Up to 4TB hard disk and 1TB SD card support |
| Input voltage | DC 8V-36V, shutdown protection above 42V |
| Operating temperature | -30°C to +70°C |
| Dimensions | Approx. 168/175 x 166 x 60 mm |
| Net weight | Approx. 1.14 kg |
Storage Capacity Reference
The actual recording time depends on channel quantity, recording resolution, bit rate, recording quality and storage capacity. The source specification provides example recording time calculations for 64GB to 4TB storage using different quality levels. For fleet projects, Xinvisual can help estimate storage needs according to camera channels and recording requirements.
How to Choose the Right MDVR Configuration
Before selecting an MDVR system, confirm the number of cameras, recording channels, storage capacity, 4G/WiFi needs, GPS tracking requirements, video output needs and alarm trigger inputs. For large fleet projects, it is better to select the MDVR, cameras, monitor, storage and wiring together as a complete system.
Related Xinvisual Products and Solutions
- MDVR Systems for different fleet recording projects.
- AHD 1080P MDVR System with 4G, WiFi and GPS for standard fleet recording applications.
- 8CH MDVR with ADAS and DSM function for advanced vehicle safety monitoring.
- Vehicle Cameras for front, rear, side and cabin monitoring.
- Vehicle Monitors for in-cab live display.
- Fleet Camera Monitoring Solution for camera, monitor and MDVR integration.
Related Technical Resources
- Fleet Camera Monitoring Solution for camera, monitor and MDVR system planning.
- Why Reliable Vehicle Camera Systems Are No Longer Optional for Commercial Fleets for fleet safety and recording background.
- Advanced Driver Assistance and Integrated Fleet Safety Systems for ADAS, BSD, DMS and fleet system integration ideas.
FAQ
What is the difference between HDD MDVR and SD card MDVR?
An HDD MDVR is usually selected when fleets need longer recording time, larger storage capacity and multi-camera video records. An SD card MDVR is more compact and can be suitable for lighter recording needs, but storage duration is usually more limited. The best choice depends on camera channels, recording time, vibration environment and remote monitoring requirements.
Can this MDVR support remote monitoring?
Yes. Depending on the selected configuration, the system can support 3G/4G/WiFi remote monitoring, video review, playback, parameter settings and firmware upgrade functions.
Can Xinvisual provide a complete MDVR camera system?
Yes. Xinvisual can recommend cameras, monitors, cables, connectors, storage and MDVR configuration according to your vehicle type and fleet project requirements.
Request an MDVR System Recommendation
If you are planning a commercial vehicle video recording or fleet monitoring project, contact Xinvisual for a suitable MDVR system configuration.
