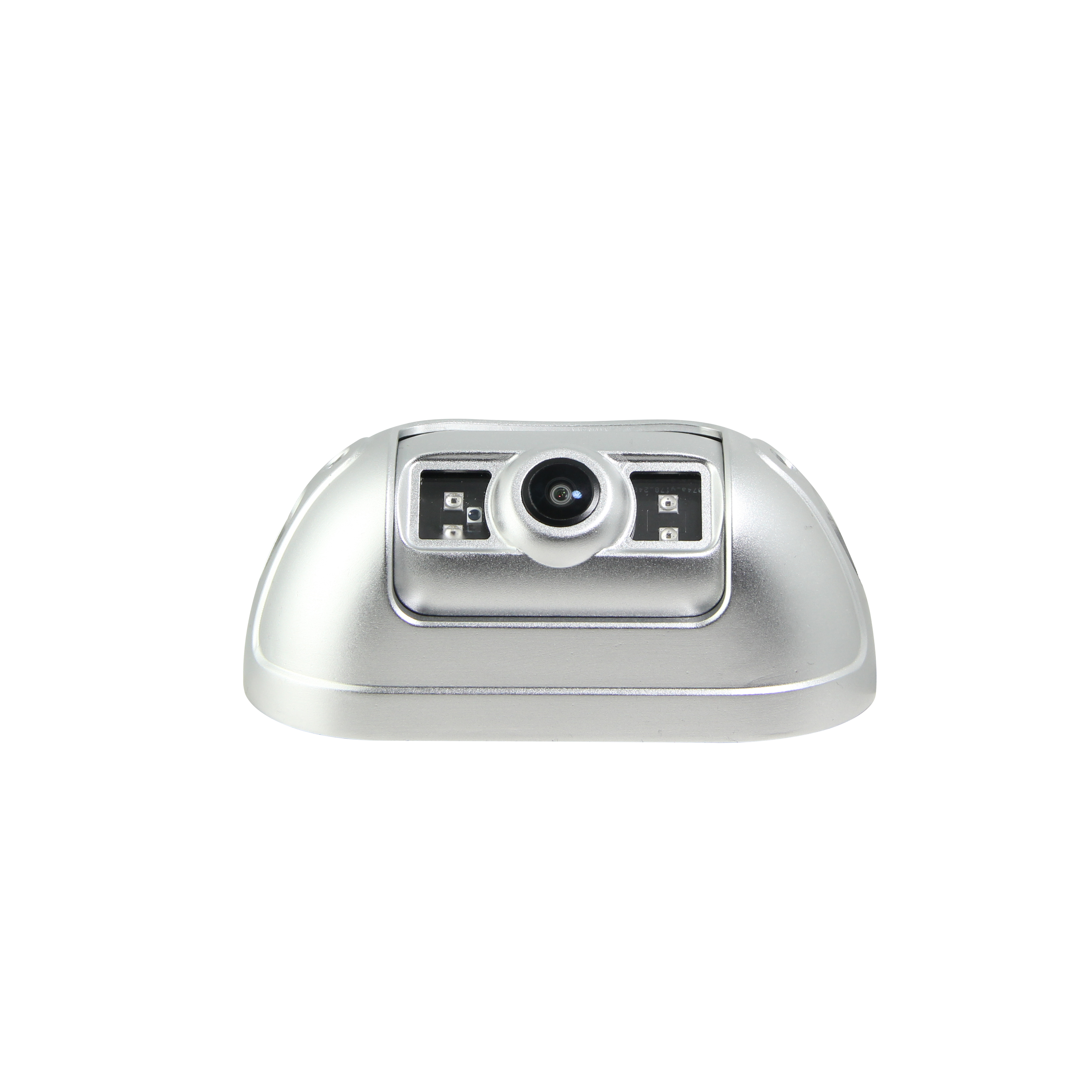

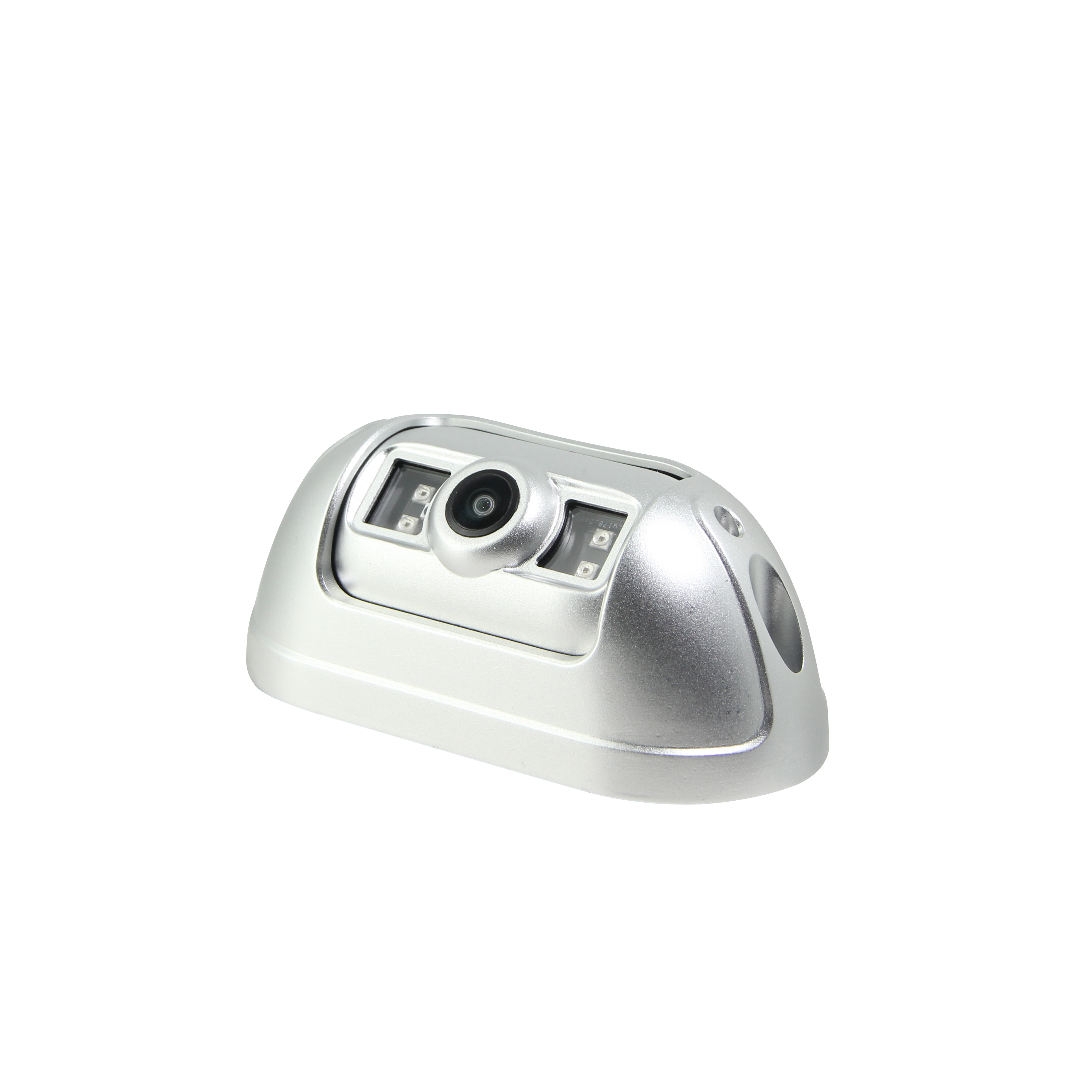

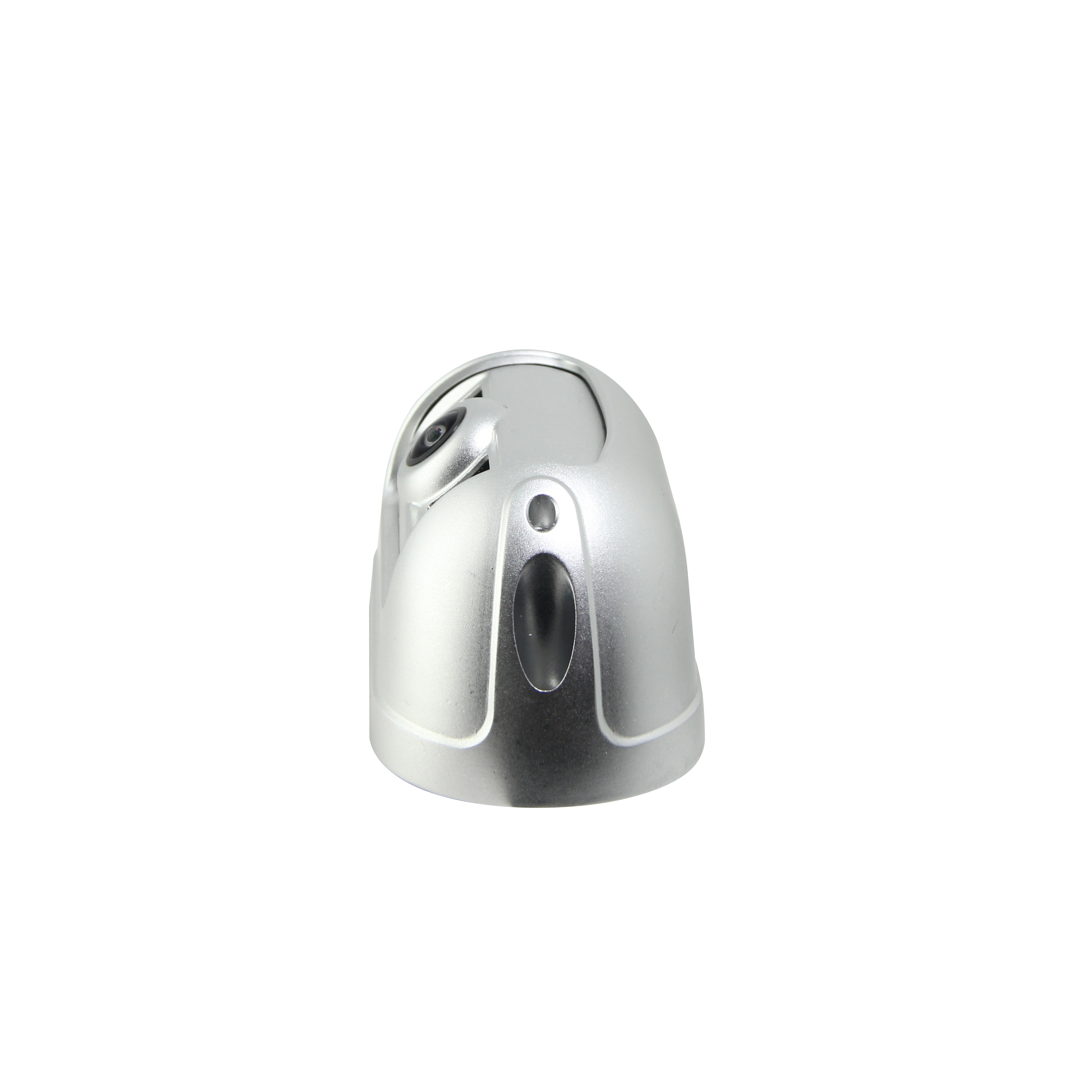

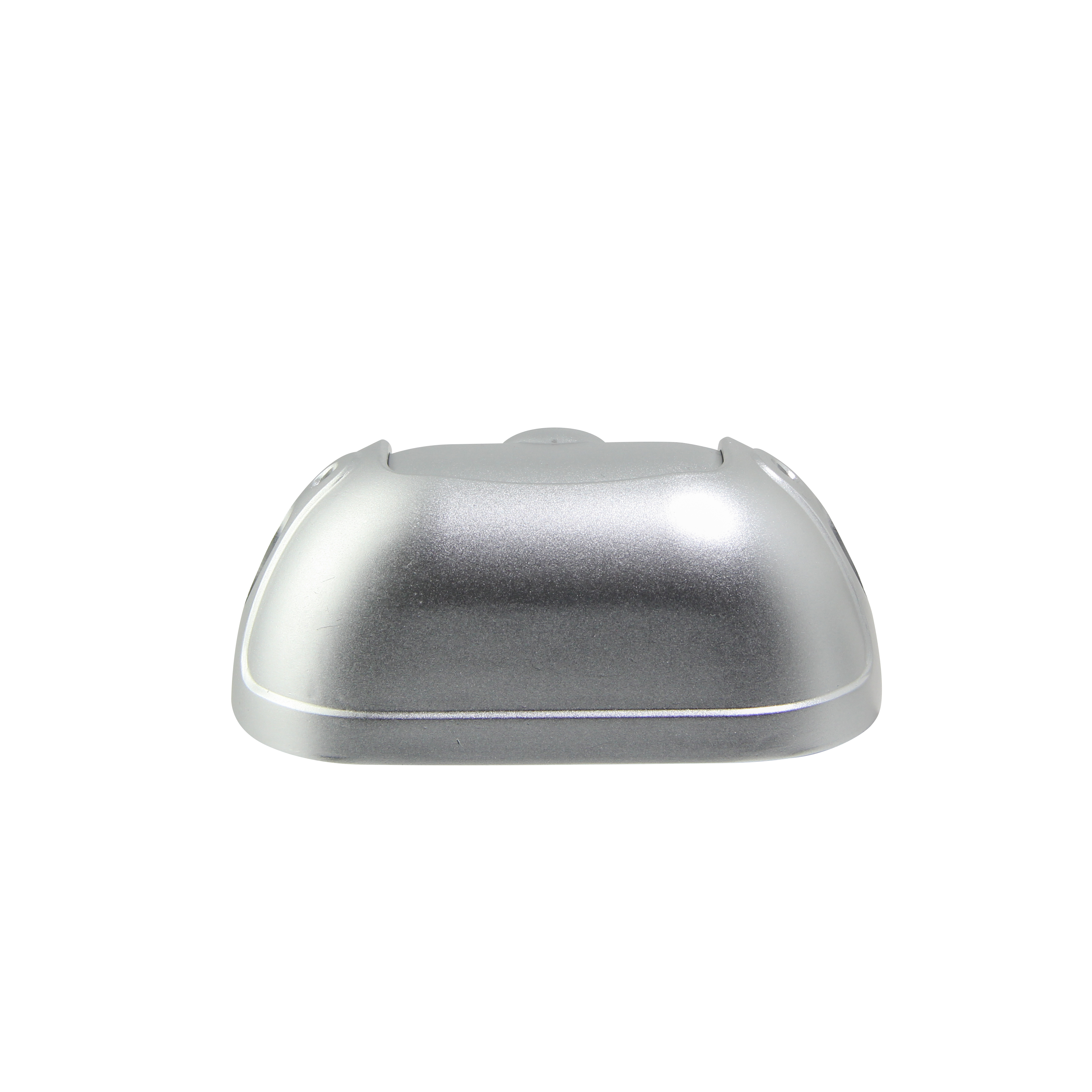

BSD AI Camera — Blind-Spot Monitoring, 720P AHD, IP69K
This BSD AI camera is an intelligent blind spot detection camera developed for commercial and industrial vehicles. It helps drivers identify pedestrians and vehicles in critical side and rear blind spot areas, improving safety with real-time audio warnings, stable 720P AHD output and a durable IP69K waterproof housing.
Built for professional fleet safety and driver assistance, the BSD AI Camera combines high-definition vision with onboard artificial intelligence.
It automatically distinguishes humans and vehicles, issuing immediate audio warnings when an obstacle enters the detection zone — reducing collisions and improving driver awareness.
With mobile-adjustable detection areas, users can fine-tune the warning zones according to vehicle type or working environment.
Its 5-pin aviation connector ensures a stable, vibration-resistant signal connection, making it suitable for long-distance installations on trucks and machinery.
Key Features
-
🧠 AI Smart Detection — Automatically identifies pedestrians and vehicles in real time.
-
🔊 Audio Alarm Alerts — Sends instant sound notifications to warn drivers of nearby obstacles.
-
📱 Mobile Adjustable Detection Zone — Easily configure detection distance and area via smartphone app.
-
📸 720P AHD Image Quality — Delivers clear, low-latency video for MDVR or monitor integration.
-
🌦️ IP69K Waterproof Housing — Withstands rain, dust, and high-pressure cleaning.
-
🧰 5-Pin Aviation Connector — Secure industrial-grade interface for stable data transmission.
-
🌙 0.01 Lux Low-Light Performance — Works reliably at night or in dim lighting.
-
⚙️ Rugged and Reliable — Aluminum alloy housing, 10 m detection range, and wide -20 °C ~ +70 °C working temperature.
Typical Applications
This BSD AI camera is suitable for trucks, buses, forklifts, construction vehicles, agricultural equipment and other heavy-duty vehicles that require blind spot monitoring and pedestrian detection assistance. It is especially useful in busy urban roads, warehouses, logistics yards and industrial working environments.
-
Trucks & Trailers — Detect pedestrians and vehicles near side blind-spots.
-
Buses & Coaches — Enhance safety in urban traffic and at bus stops.
-
Forklifts & Industrial Vehicles — Prevent workplace collisions in tight aisles.
-
Construction & Agriculture Equipment — Ensure safe operations in dynamic job sites.
AI Detection Applications
This BSD AI camera can support different vehicle safety applications:
Truck Blind Spot Monitoring
Installed on the side of trucks and commercial vehicles, the camera helps monitor blind areas where pedestrians, cyclists and vehicles may appear.
Forklift Safety Monitoring
Installed on forklifts or industrial vehicles, the system helps operators become more aware of people and vehicles in surrounding areas.
Fleet Safety Upgrades
Combined with vehicle monitors or MDVR systems, the camera can become part of a complete vehicle safety solution.
Technical Specifications
| Item | Spec |
|---|---|
| Power Supply | DC 12 V, ≤300 mA |
| Image Sensor | 1/3″ CMOS |
| Video System | PAL / NTSC |
| Resolution | AHD 1280×720P |
| Frame Rate | 25 FPS |
| Field of View | 135° |
| Video Output | 1.0 Vpp, 75 Ω |
| Scan Mode | Progressive scan |
| Electronic Shutter | 1/25 – 1/50,000 s |
| Min. Illumination | 0.01 Lux @ F1.2 |
| Detection Distance | 10 m |
| Waterproof | IP69K |
| Operating Temp. | −20 °C ~ +70 °C, RH ≤95% |
| Storage Temp. | −40 °C ~ +80 °C, RH ≤95% |
| Dimensions | 89 × 75 × 104 mm |
| Net Weight | 0.7 kg |
Key Benefits
- Improve blind spot awareness for drivers
- Detect pedestrians and vehicles in real time
- Reduce collision risks in urban and industrial environments
- Suitable for heavy-duty and commercial vehicle applications
Why Choose This BSD AI Camera?
This AI blind spot camera combines practical detection performance, audio warning support, waterproof durability and flexible detection zone adjustment, making it a reliable solution for fleet safety and industrial vehicle monitoring.
Can This Camera Be Used for BSIS, MOIS or DVS Projects?
This BSD AI camera can be used as a safety system component in BSIS/MOIS-style or DVS retrofit projects. It is designed for blind spot detection applications where pedestrians, cyclists or vehicles may appear near trucks, buses, forklifts or industrial vehicles.
Typical system combinations may include:
- Side-mounted BSD AI camera for blind spot detection
- Front-mounted AI detection camera for moving-off risk awareness
- In-cab monitor for driver visual warning
- MDVR for event recording and fleet review
- Audio warning output for real-time driver alerts
Important note: Final compliance depends on vehicle type, installation position, warning logic, system configuration, local regulation, testing and approval requirements. Xinvisual can help recommend camera, monitor and MDVR components for project evaluation, but buyers should confirm final compliance with local authorities or certification partners.
Frequently Asked Questions
What is a BSD AI camera?
A BSD AI camera is a blind spot detection camera that uses artificial intelligence to identify pedestrians and vehicles near commercial or industrial vehicles.
How does this blind spot detection camera improve safety?
It improves safety by detecting nearby road users or obstacles in blind spot areas and sending real-time audio alerts to the driver.
Can this AI camera detect both pedestrians and vehicles?
Yes. The camera is designed to distinguish pedestrians and vehicles and provide warning alerts when they enter the detection zone.
Is this BSD camera suitable for trucks, buses and forklifts?
Yes. It is suitable for trucks, buses, forklifts and other industrial or heavy-duty vehicles that require blind spot monitoring.
Is the detection area adjustable?
Yes. The detection zone can be adjusted through a mobile app to match different vehicle types and working environments.
Can this camera be used for BSIS or MOIS projects?
It can be used as a detection component in BSIS/MOIS-style safety solutions. Final compliance depends on vehicle type, installation position, full system design and local approval requirements.
Does the camera need to connect with a monitor or MDVR?
For most vehicle safety projects, the camera is connected to an in-cab monitor, warning device or MDVR system so the driver can receive visual or audio alerts and the fleet can keep video records if required.
Need a BSD AI camera for trucks, buses or forklifts? Contact Xinvisual Electronics for quotation, technical details and OEM/ODM support.
