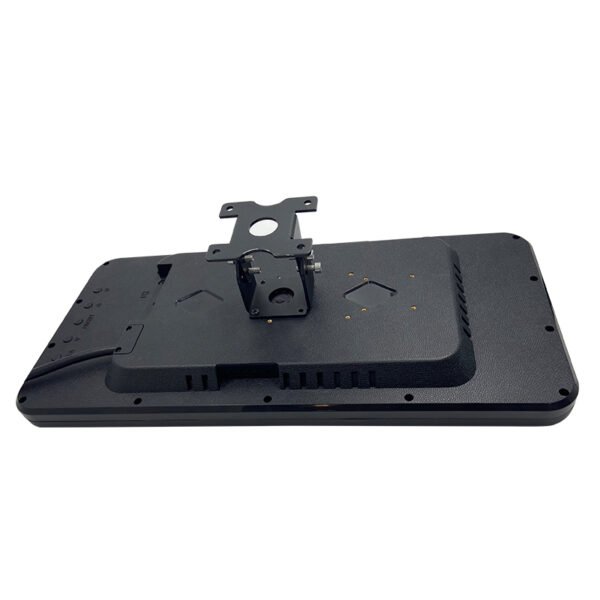

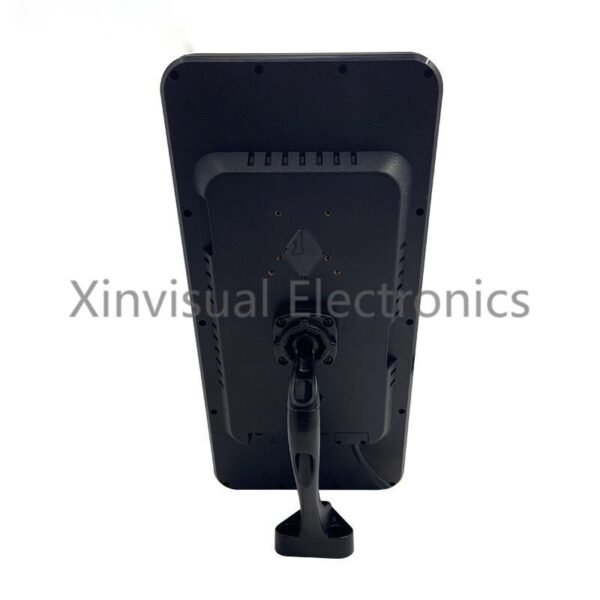

Electronic Vertical Mirror Monitor
Quick Summary (for fleets):
The XST-1283 12.3″ Electronic Mirror Monitor is a rearview mirror replacement display for trucks, buses, and commercial vehicles. It supports AHD 1080P + CVBS (mixed formats), wide voltage DC 12–36V, and reverse trigger auto-switching for safer reversing and lane changes. Optional multi-camera viewing and DVR recording via TF card make it ideal for retrofit fleet projects.
The 12.3-inch Electronic Mirror Monitor redefines safety and visibility for commercial and specialty vehicles. Designed as a sleek rearview mirror replacement, this monitor delivers a widescreen, high-definition view from one or two cameras—ideal for covering rear and blind spot areas with unmatched clarity.
Its mirror-style housing blends seamlessly with modern vehicle interiors, while the anti-glare glass and adaptive brightness ensure clear vision at all hours. Whether you’re reversing, changing lanes, or maneuvering tight spaces, this monitor provides a real-time, distortion-free video feed where traditional mirrors fall short.
✅ Key Features
-
Large 12.3-Inch Display
Extra-wide LCD built into a slim, OEM-style rearview mirror design. -
High-Resolution AHD Input
Supports up to AHD 1080P cameras for ultra-clear image quality. -
Dual Video Inputs
View both rear and side camera feeds—manually or via auto trigger. -
Anti-Glare + Light Sensor
Automatic brightness adjustment for day/night driving. -
Reverse Trigger Function
Automatically switches to rear camera when reversing.
⚙️ Technical Specifications
- Screen size: 12.3inch (8:3)IPS FULL HD
- Resolution: 1920(H)xRGBx720(V)
- Screen back light: LED
- Brightness: 850cd/㎡
- Contrast: 800:1
- Visible range: 292.032(H)*109.512(V)mm
- Visible angle: 85/85/85/85
- System: PAL/NTSC/Mix
- Voltage: DC12V~36V (With undervoltage, overvoltage, overload, short circuit, reverse protection)
- Working Temperature:-20℃～70℃,Maximum humidity 95%
- Storage Temperature:-30℃～80℃,Maximum humidity 95%
- Maximum support for TF card 256G video recording (standard 32GB/ 24h)
- Video: Support CVBS/AHD720P/AHD960P/AHD1080P/Mix
- Video input: Max four way video inputs, one way output; Four way trigger wires
- Display mode: Built-in 12 multi-screen combination display modes, which can be set as the default boot screen to meet the special needs of different users (four-way mode)
- Image control: Each channel mirror/normal;Brightness;Contrast adjust
- Video files can be played back online or backed up to a computer
- Loop video, auto overwrite, important video files can be set lock protection, lock files will not be overwritten delete
- Dimensions: 335(L)x145(W)x38(T)
Related Products & Guides
-
For AI blind‑spot detection + multi‑view: 10.1″ BSD AI Vehicle Monitor
-
For fast retrofit split‑view + DVR: 7″ Split Digital Wireless DVR HD Monitor
FAQ
Q1: What video formats does this mirror monitor support?
A: It supports CVBS and AHD (720P/960P/1080P), including mixed-format fleet upgrades.
Q2: Does it support reverse trigger switching?
A: Yes. The monitor can auto-switch to the rear camera when reversing (reverse trigger).
Q3: What voltage is supported for trucks and buses?
A: DC 12–36V, suitable for both 12V and 24V vehicle systems.
Q4: How many camera inputs can it handle?
A: It supports multi-camera input (up to 4 video inputs) and trigger wires for automatic view switching.
Q5: Does it support recording?
A: Yes. It supports TF card recording (up to 256GB, depending on configuration) for evidence and incident review.
Installation note: If you are using multiple cameras (rear + side + front), trigger wires can automatically switch the correct camera view when reversing or turning. See our guide: Trigger Wires Explained: How Vehicle Monitors Auto-Switch Camera Views.
