Quick Answer
This 4.3-inch rearview mirror monitor with DVR is designed for vehicle camera display and driving video recording applications. It clips over the original mirror, supports two video inputs, provides reverse trigger display and records footage to a TF card. It can be used as a display and recording component in DVS-style commercial vehicle safety projects, fleet retrofit systems and light vehicle monitoring applications.
Product Overview

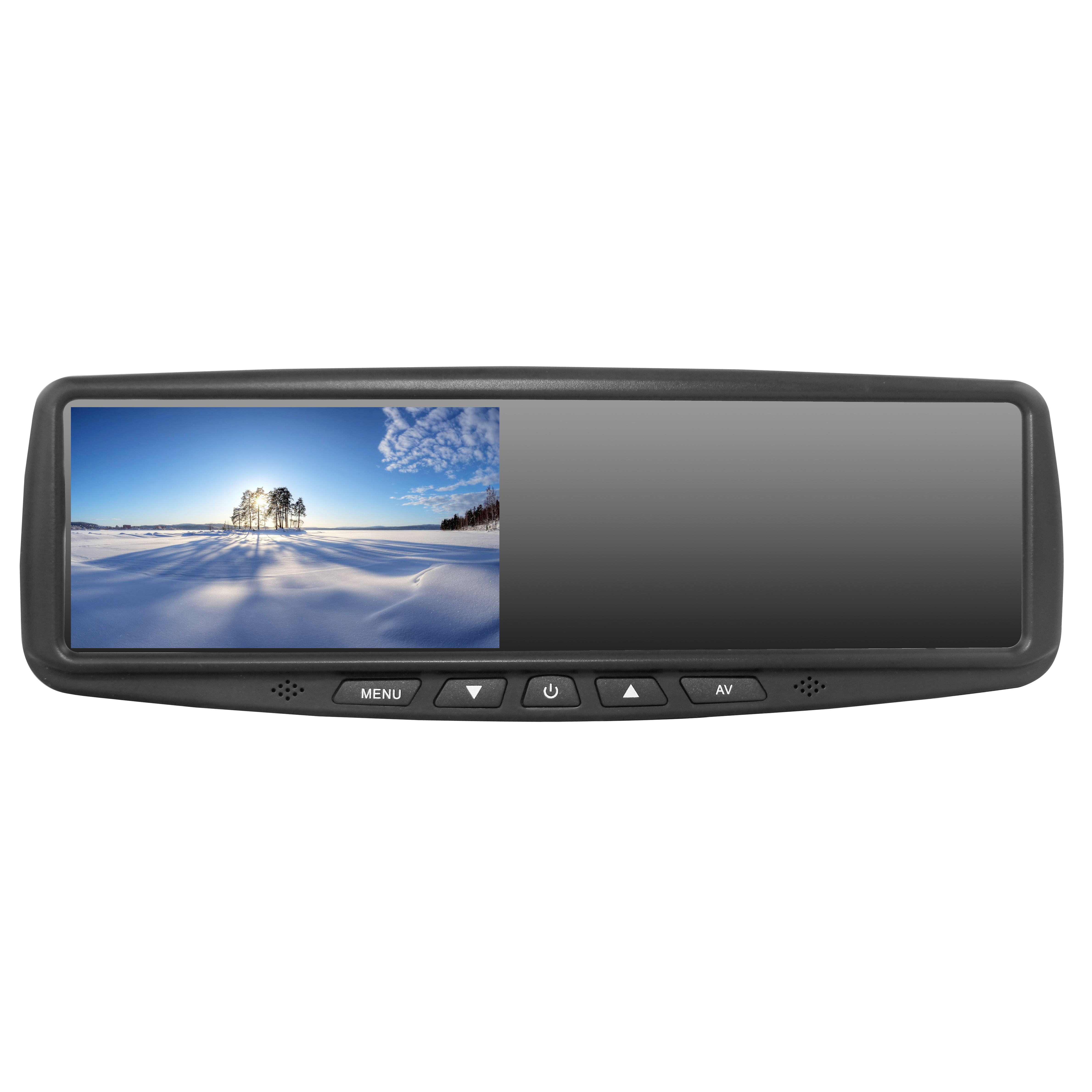

The 4.3-inch mirror monitor combines a compact LCD display with DVR recording in a clip-on rearview mirror housing. When the screen is not active, the unit can still work as a mirror. When connected to rear, side or front vehicle cameras, it provides a practical display solution for reversing, parking, driver assistance and video review.
For distributors, installers and fleet buyers, this product is useful when a vehicle needs both camera display and basic recording without installing a large dashboard monitor. It is suitable for light trucks, vans, shuttle vehicles, buses, service vehicles and fleet retrofit projects.
Key Features
- 4.3-inch embedded LCD screen: compact mirror-style display for vehicle camera viewing.
- Built-in DVR recording: supports TF card recording, up to 128GB depending on configuration.
- Two video inputs: supports connection with rear, side or front cameras according to installation needs.
- Reverse trigger display: one trigger wire can switch the image when reverse gear is activated.
- Clip-on mirror design: installs over the original rearview mirror for a clean retrofit.
- Wide voltage input: DC10V to DC36V for different vehicle electrical systems.
- PAL / NTSC support: suitable for common vehicle camera signal systems.
- Remote and button control: supports keystroke and remote controller operation.
DVS-Style Application Support
This mirror monitor can be used as a vehicle display and recording component in DVS-style camera system projects. It should not be described as a certified compliance system by itself. Final project compliance depends on the complete vehicle configuration, camera positions, detection requirements, installation quality and local regulations.
For projects related to DVS, BSIS or MOIS, Xinvisual can support camera, monitor and recording component selection for commercial vehicle safety applications.
Recommended Applications
Light Trucks and Vans
Used with a rear camera, the mirror monitor helps drivers check reversing areas and record driving footage during daily operations.
Shuttle Vehicles and Buses
The clip-on design is suitable for passenger transport vehicles that need a compact display without changing the dashboard layout.
Fleet Retrofit Projects
For fleets that need camera display and recording in one compact unit, this mirror monitor can reduce installation complexity compared with separate display and DVR devices.
DVS-Style Vehicle Safety Projects
When combined with suitable external cameras, the monitor can become part of a broader commercial vehicle visibility solution.
Recommended Camera Combinations
| Use case | Recommended combination | Purpose |
| Reversing display | Mirror monitor + rear view camera | Rear visibility and reverse trigger display |
| Side monitoring | Mirror monitor + side camera | Additional awareness around vehicle side areas |
| Fleet retrofit | Mirror monitor + DVR recording + camera | Display plus recorded footage for review |
| DVS-style projects | Mirror monitor + selected external cameras | Display and recording component for safety system integration |
Technical Specifications
| Item | Specification |
| Screen size | 4.3-inch digital screen |
| Resolution | 480 * RGB * 272 |
| Video system | PAL / NTSC |
| Video input | Two-way video inputs |
| Trigger wire | One-way trigger wire for automatic image switching |
| Recording storage | TF card, maximum 128GB |
| Continuous recording | Maximum 280 hours depending on card capacity and recording settings |
| Brightness | 450 cd/m2 |
| Contrast | 500:1 |
| Power supply | DC10V to DC36V |
| Power | 5W |
| Operation | Keystroke and remote controller |
| Protection | Reverse polarity protection |
Buyer Checklist
- Confirm whether the vehicle needs display only or display plus recording.
- Confirm camera signal type and PAL / NTSC compatibility.
- Check whether one or two camera inputs are required.
- Confirm reverse trigger wiring requirements.
- Check available mirror size and clip-on installation space.
- Confirm voltage range and vehicle power supply.
- Confirm TF card capacity and recording time requirements.
- For DVS-style projects, confirm the full system requirement before ordering.
Related Xinvisual Products and Solutions
- Mirror Monitors
- Vehicle Cameras
- AHD Reversing Camera
- DVS / BSIS / MOIS Guide
- Contact Xinvisual for a system recommendation
FAQ
Can this mirror monitor record video?
Yes. The monitor has built-in DVR recording and supports TF card storage up to 128GB depending on configuration.
Can it connect to more than one camera?
Yes. The product supports two-way video inputs, so it can be connected with selected rear, side or front cameras according to the installation plan.
Does this product guarantee DVS compliance?
No. This product should be described as a display and recording component for DVS-style applications. Final compliance depends on the complete system configuration, installation and local project requirements.
Which vehicles can use this product?
It can be used for light trucks, vans, shuttle vehicles, buses, service vehicles and fleet retrofit projects where a compact mirror-style display and recording device is needed.
